An off-grid generator set carries a responsibility a standby set never does. With no utility behind it, the set is not supporting a network — it is the network, establishing voltage and frequency for everything connected and absorbing every disturbance those loads produce. From a procurement perspective that changes what “reliable” means. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, is worth evaluating here because its published range covers containerised generation, hybrid stations and storage under one control platform, which is the combination most off-grid projects eventually need.

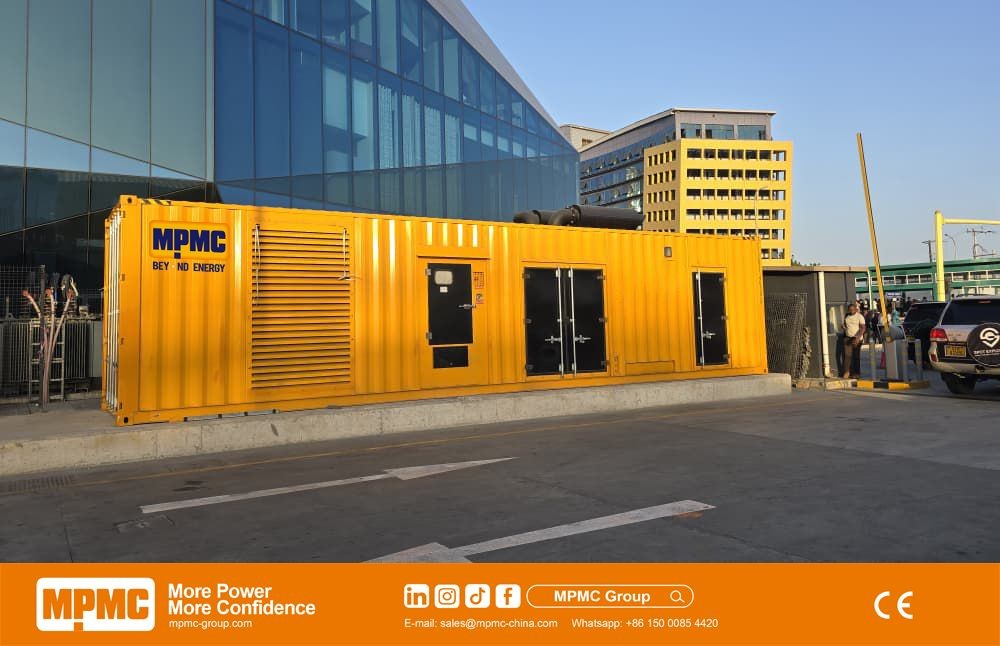

MPMC 1250 kVA containerised diesel generator set

The Set Becomes the Grid

On a grid-connected site the utility provides a stable frequency reference and substantial fault current, and the set simply follows. Remove that and every function moves onto the set: it must form the voltage waveform, hold frequency against every load change, and supply enough fault current for the site's protection devices to discriminate correctly.

The last point is the one most often missed. Protection settings copied from a grid-connected design frequently fail to discriminate on generator fault levels, so the earthing and protection study belongs in the front-end work rather than in commissioning. The alternator's short-circuit capability, not the engine rating, governs what is achievable.

Sizing Bounded at Both Ends

Off-grid sizing has a floor as well as a ceiling. The maximum matters because there is no utility to supply a shortfall, so the largest starting load must be carried by the set alone. The minimum matters equally, because an engine held at very low load for long periods accumulates deposits and needs earlier intervention.

MPMC lists containerised single-engine units from 800 to 3,750 kVA, twin-engine units from 1,250 to 3,000 kVA and a four-engine configuration at 1,600 kVA, with multi-unit parallel operation and load sharing through DSE or DEIF controllers and motorised circuit breakers. Several appropriately sized units sequenced against demand generally outperform one large unit on both fuel and engine life, and that sequencing logic should be specified rather than left to site practice.

What Off-Grid Conditions Force Into the Design

Where Solar and Storage Join the Generator

MPMC lists a GSB series of integrated hybrid stations from 10 to 120 kVA combining solar, generator and battery on one mobile chassis, a GB series covering the same output band without the array, and an SPK series of mobile solar plants from 7.65 kWp to 231.84 kWp. For larger schemes it lists an HBD-R series positioned as a generator set partner from 30 kW to 610 kW continuous and 61.44 to 610.6 kWh with millisecond transient smoothing.

The mechanism is straightforward: an engine held near its efficient load point with storage absorbing variation burns less fuel than an oversized engine running lightly loaded. How much less depends on the site's own load profile and delivered fuel price, so it is a modelling exercise rather than a product figure.

MPMC GSB Series hybrid power station

Control and Visibility on an Unattended Site

Off-grid sites rarely support a resident engineer. MPMC lists a self-developed SCADA and EMS with real-time monitoring, alarm and fault management, ten years of data retention, an SL3-level cybersecurity framework and StarLink satellite communication as a backup link, together with PQ, VF, VSG, black start and grid-forming modes on its storage platform.

Two items are worth confirming rather than assuming: that monitoring covers the generator controllers and not only any storage equipment, and that alarms route to a party able to act on them. A monitored fault nobody attends produces the same outage as an unmonitored one.

Published Off-Grid Deliveries

MPMC lists a Kenyan microgrid programme of 6 MW across four sites, each combining more than 1 MW of solar generation, at least 1 MWh of DC-coupled storage and diesel backup of two 500 kW plus two 250 kW units, with published operation described as stable around the clock in a high-ultraviolet, sandy environment. A 21.6 MW Indonesian island power station is listed on Cummins KTA50-GS8 engines with Leroy-Somer LSA50.2 L8 alternators running on biodiesel, and an Australian mining programme at 14.7 MW using 245 GSB hybrid stations.

These describe the class of off-grid project delivered. They are not a performance guarantee for a different site, whose generation split and engine runtime follow its own resource and demand profile.

Service Where a Visit Takes Days

MPMC's published after-sales model routes engine and alternator support through those manufacturers' global service networks, with its own obligation covering manufacturing quality and parts replacement, and published warranty for the diesel genset series of 1 year or 1,000 operating hours. Labour, travel and airfreight are normally excluded unless agreed in the contract.

On an off-grid site the practical consequence is that engine brand selection should follow the destination country's service map rather than head-office preference. The items worth holding locally are not the expensive ones but the ones that stop a machine and take longest to fly in.

Off-Grid Enquiry Essentials

• State the largest starting load and the minimum expected load, not only the peak demand.

• Confirm island-mode capability and the controller configuration that delivers it.

• Require the alternator short-circuit capability and commission an earthing and protection study.

• Specify the dispatch and rotation strategy across multiple units.

• Give the delivered fuel cost so any hybrid option can be modelled honestly.

• Confirm the monitoring scope, communications backup and who receives the alarms.

• Agree the on-site spares list and the named authorised engine service centre.
